Alzone Pole Mount Racking
Alzone Pole Mount Kits
The Alzone Pole mount bracket is cast from Aluminium. When combined with Alzone rail it is designed to carry up to two large solar panels (each a maximum of 1700mm x 1000mm) or a series of smaller sized modules.
The Alzone pole mount comes with an internal adaptor tube to suit 2 sizes of pipe, the pipe diameter being determined by the maximum height of the panels as well as the size and number of modules.
The tilt angle can be adjusted from 10 degrees through to 35 degrees.
Stainless steel mounting hardware and anodised (corrosion resistant) aluminium rail is provided when the pole mount is purchased as a pole mount kit (P/No. SPMPMKIT).
Panel clamps and clamp bolts are ordered separately to they suit the number of modules and the size of the solar modules frame.
The pole required to mount these is not included with the kit and can be source from your local metal supply company. It is recommended to use a heavy walled galvanised pipe with either 40NB (48.3mm O.D.) or 50NB (60.3mm O.D.). The 80NB ( 88.90mm O.D.) sized pipe if compliance is required.
The standard pole mount kit uses Alzone Standard Rail and Alzone Eco Rail in combination with other Alzone components.

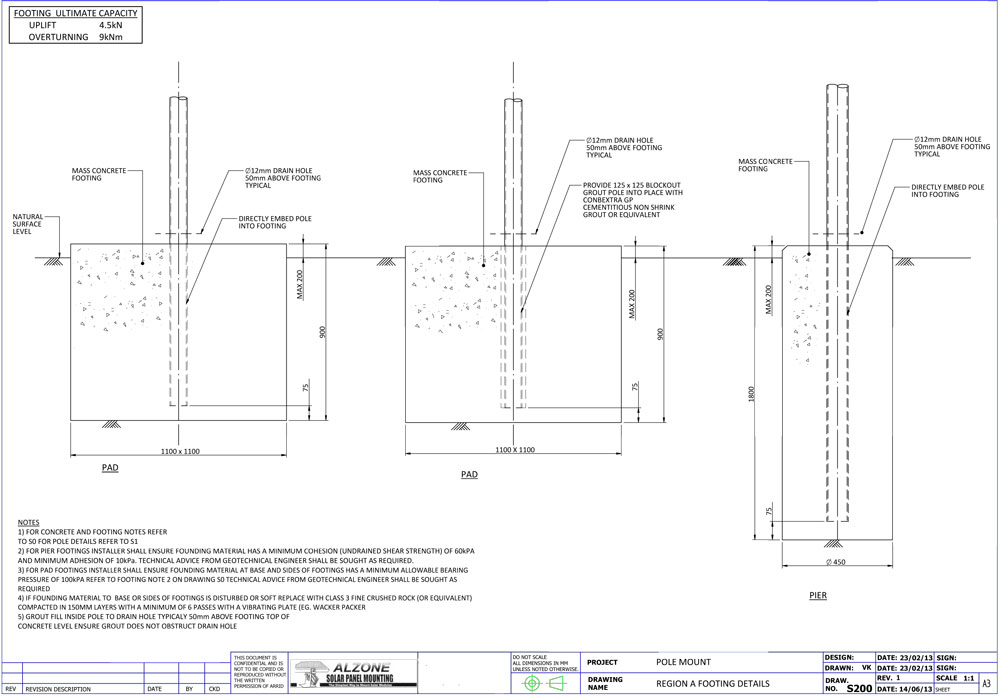

Alzone Pole Mount Kits (P/No SPMPMKIT1600x850 & P/No SPMPMKIT1700x1000) are Wind Load Certified by an Engineer for use in Australian Wind region A, providing the concrete footing, module installed height and panel dimensions comply. Compliance is available only when system uses the 80NB pole.
Small Panels

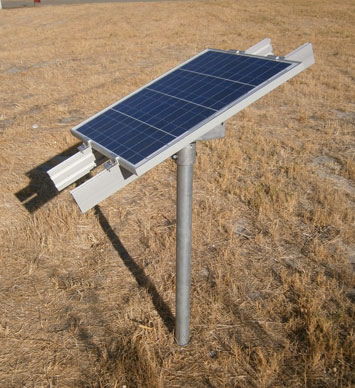

P/No. SPMPK540
- POLE MOUNT KIT ( aluminium) to suit 1 x 5W-60W single panel up to 750mm long*
- KIT includes casting, M12 x 90mm Bolt for attaching Casting to Pole, 3/8 bolt set to attach Rail to Casting and an Adaptor tube to suit 50NB or 60NB Pipe
- Easy assembly and installation.
- Durable Aluminium with stainless fasteners.
- Height adjustable to suit individual requirements.
- Suits any 40nB, 50nB or 80nB galvanized pipe or similar sized alloy tube.
- These are a must for economical solar installation on Solar Pumping, Electric fences, Gates, Telecommunications and GPS Repeater Stations.
* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)
NOTE: NB Pole or Panels are NOT included.

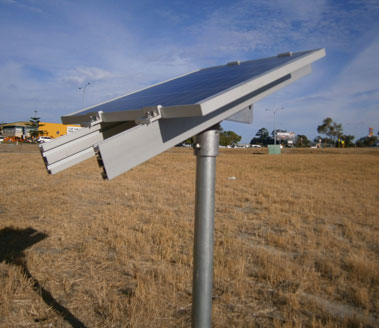

P/No. SPMPK1
- POLE MOUNT KIT (aluminium) to suit 1 x 135W single panel up to 700mm wide or 2 x Small Panels with maximum dimensions of 700mm*
- KIT includes casting, M12 x 90mm Bolt for attaching Casting to Pole, 3/8 bolt set to attach Rail to Casting and an Adaptor tube to suit 50NB or 60NB Pipe
- Easy assembly and installation.
- Durable Aluminium with stainless fasteners.
- Height adjustable to suit individual requirements.
- Suits any 40nB, 50nB or 80nB galvanized pipe or similar sized alloy tube.
- These are a must for economical solar installation on Solar Pumping, Electric fences, Gates, Telecommunications and GPS Repeater Stations.
* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)*
NOTE: NB Pole or Panels are NOT included.
* Please specify quantity and size of panels you are mounting when purchasing to ensure correct parts are supplied
| SPMPK540 |  |
||
| SPMPK1 | |
Large Panels
.jpg)

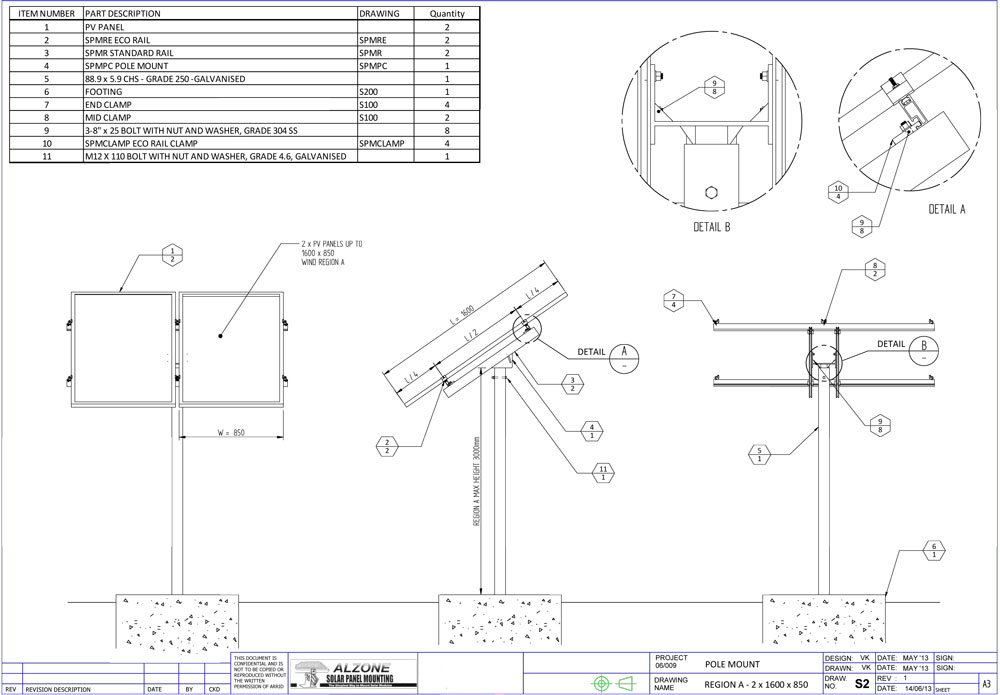

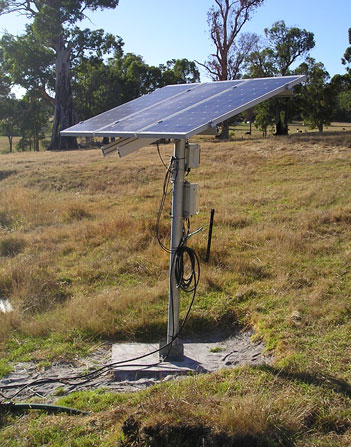

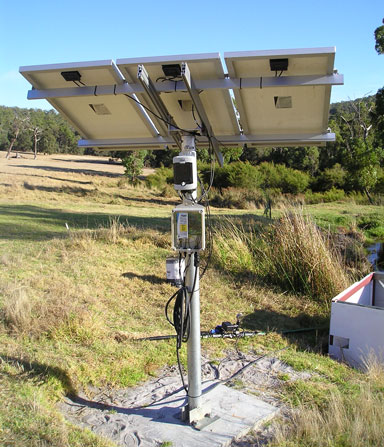

P/No. SPMPMKIT1600x850
POLE MOUNT KIT (aluminium) to suit up to 2 x 180W-300W panels with max dimensions up to 1600 x 850mm. Or a series of smaller panels which take up the same square meterage*
Suitable for use with 3 different pipe sizes 40NB, 50NB and 80NB
Kit Features:
- Easy assembly and installation.
- Durable Aluminium with stainless fasteners.
- Height adjustable to suit individual requirements.
- Suits any 40nB, 50nB or 80nB galvanized pipe or similar sized alloy tube. (For Wind Load Compliance the 80NB Pole Must be used)
- These are a must for economical solar installation on Solar Pumping, Electric fences, Gates, Telecommunications and GPS Repeater Stations.
KIT includes:
- Pole Mount Casting
- Alzone Standard Rail to attach to Casting
- Alzone Eco Rail to attach to Standard Rail to Mount Solar Panels
- M12 x 90mm Bolt for attaching Casting to Pole
- 3/8 Bolt, Nut & Washer set to attach Rail to Casting
- Adaptor tube included to suit smaller 40NB or 50NB Pipe (Region A Compliance requires use of an 80NB Thick wall Pole)
* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)
NOTE: NB Pole or Panels are NOT included.
.jpg)

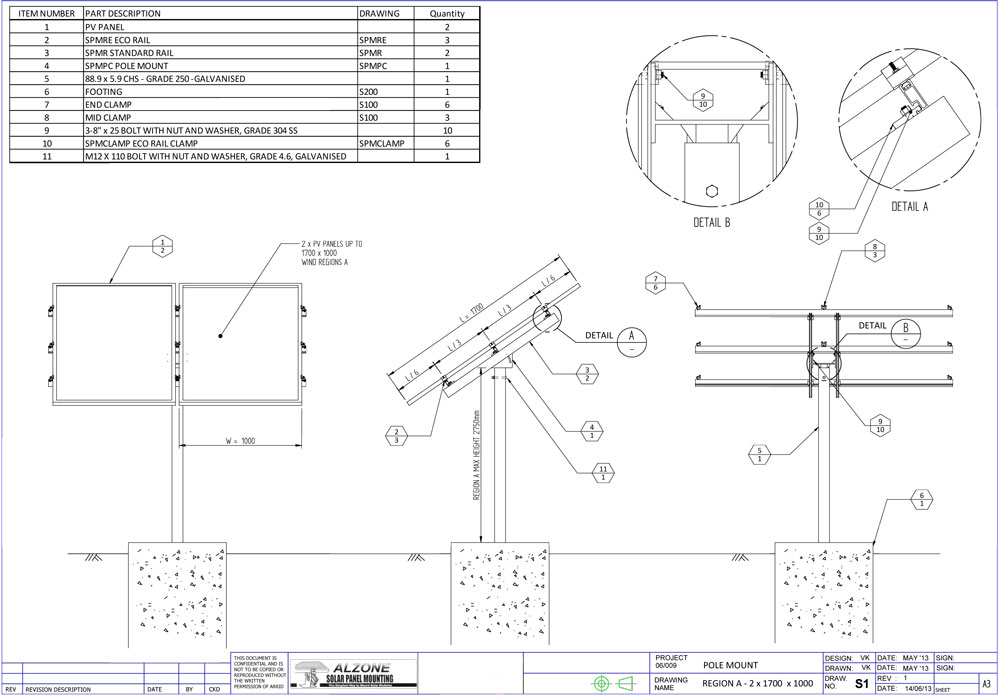

P/No. SPMPMKIT1700x1000
POLE MOUNT KIT (aluminium) to suit up to 2 x 180W-300W panels with max dimensions up to 1600 x 850mm. Or a series of smaller panels which take up the same square meterage*
Suitable for use with 3 different pipe sizes 40NB, 50NB and 80NB
Kit Features:
- Easy assembly and installation.
- Durable Aluminium with stainless fasteners.
- Height adjustable to suit individual requirements.
- Suits any 40nB, 50nB or 80nB galvanized pipe or similar sized alloy tube. (For Wind Load Compliance the 80NB Pole Must be used)
- These are a must for economical solar installation on Solar Pumping, Electric fences, Gates, Telecommunications and GPS Repeater Stations.
KIT includes:
- Pole Mount Casting
- Alzone Standard Rail to attach to Casting
- Alzone Eco Rail to attach to Standard Rail to Mount Solar Panels
- M12 x 90mm Bolt for attaching Casting to Pole
- 3/8 Bolt, Nut & Washer set to attach Rail to Casting
- Adaptor tube included to suit smaller 40NB or 50NB Pipe (Region A Compliance requires use of an 80NB Thick wall Pole)
* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)
NOTE: NB Pole or Panels are NOT included.
* Please specify quantity and size of panels you are mounting when purchasing to ensure correct parts are supplied
| SPMPMKIT1x1172x660 | |
||
| SPMPMKIT1x1470x680 | |
||
| SPMPMKIT1x1600x850 | |
||
| SPMPMKIT1x1700x1000 | |
||
| SPMPMKIT2x1470x680 | |
||
| SPMPMKIT2x1600x850 | |
||
| SPMPMKIT2x1700x1000 | |
Need a quote for racking click here

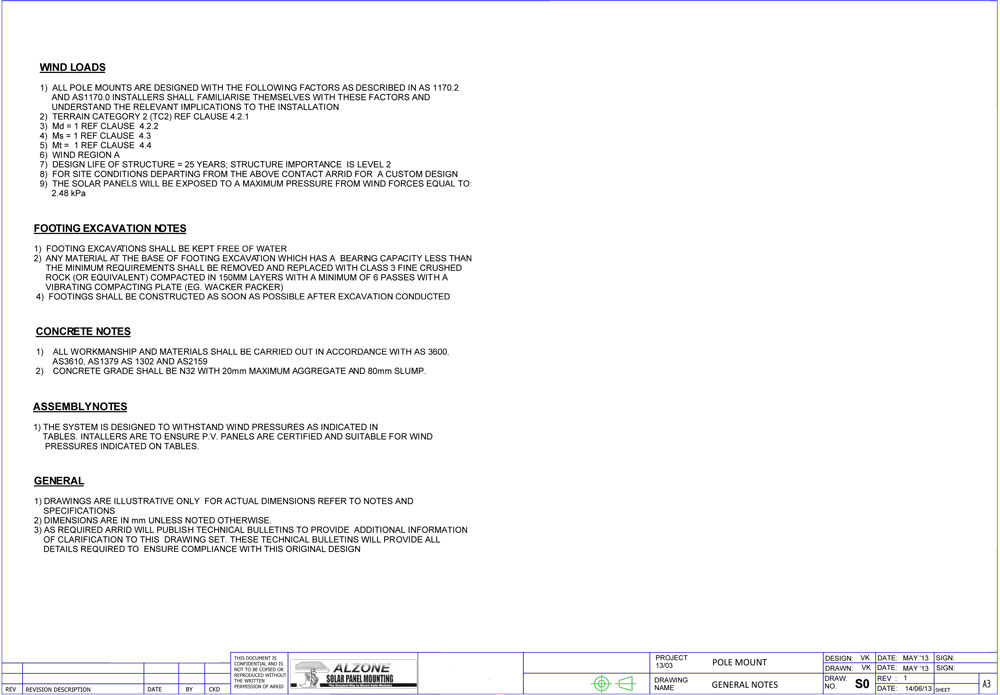

Compliance Certificate
AS/NZS 1170.0 - Structural Actions: General Principles
AS/NZS 1170.1 - Structural Design Actions: Permanent, Imposed and Other Actions
AS/NZS 1170.2 - Structural Design Actions: Wind Actions
AS/NZS 1664.1 - Aluminium Structures: Limit State Design
Wind and Zoning
| NON FLANGE RAIL | |||
| ASPMR2400 RAIL NON FLANGE | |
||
| ASPMR2840 RAIL NON FLANGE | |
||
| ASPMR3150 RAIL NON FLANGE | |
||
| ASPMR3500 RAIL NON FLANGE | |
||
| ASPMR3894 RAIL NON FLANGE | |
||
| ASPMR4220 RAIL NON FLANGE | |
||
| Easy-Rail | |||
| ASPMRA2840 Solar Easy-Rail | |
||
| ASPMRA3150 SOLAR EASY-RAIL | |
||
| ASPMRA3500 SOLAR EASY-RAIL | |
||
Feet
FOOT CORGATED
SPMFC
FOOT FLAT
SPMFF
FOOT TEE
SPMFTEE
Angle Brackets
SPMANGLE
Angle Brackets
SPMFA10
Angle Brackets
SPMFA6
Joiner
| Rail Joiner | |||
| SPMRJOINER | |
||
Clamps
END CLAMPS
SPME1US-32MM
SPME1KY-36MM
SPME1SH-46MM
SPME1SW-36mm
SPMEBP-50MM
SPME1SW-34mm
SPME1SUN-39mm
RAIL BOLTS
SPMBSH
SPMBUS
MID CLAMPS
SPM1
SPM2
RAIL BOLTS
SPMBSH
SPMBUS
Rail Bolts
Rail Bolts
RAIL BOLTS
SPMBSH
SPMBUS
